Material Overview
Advanced architectural porcelains, because of their distinct crystal framework and chemical bond characteristics, reveal efficiency advantages that metals and polymer products can not match in extreme settings. Alumina (Al ₂ O FIVE), zirconium oxide (ZrO ₂), silicon carbide (SiC) and silicon nitride (Si two N ₄) are the four significant mainstream engineering ceramics, and there are crucial distinctions in their microstructures: Al two O three belongs to the hexagonal crystal system and relies upon solid ionic bonds; ZrO ₂ has three crystal types: monoclinic (m), tetragonal (t) and cubic (c), and gets unique mechanical properties with stage change toughening device; SiC and Si Two N four are non-oxide ceramics with covalent bonds as the primary part, and have more powerful chemical stability. These architectural differences straight bring about significant differences in the preparation process, physical buildings and design applications of the 4. This short article will systematically analyze the preparation-structure-performance relationship of these 4 ceramics from the perspective of products science, and explore their potential customers for commercial application.

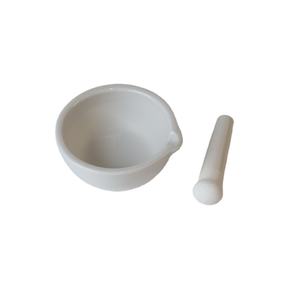

(Alumina Ceramic)
Preparation procedure and microstructure control
In regards to prep work process, the four porcelains reveal noticeable distinctions in technological courses. Alumina porcelains use a reasonably conventional sintering process, generally using α-Al ₂ O four powder with a purity of more than 99.5%, and sintering at 1600-1800 ° C after dry pressing. The key to its microstructure control is to prevent abnormal grain growth, and 0.1-0.5 wt% MgO is generally added as a grain border diffusion inhibitor. Zirconia ceramics need to introduce stabilizers such as 3mol% Y ₂ O six to preserve the metastable tetragonal stage (t-ZrO ₂), and use low-temperature sintering at 1450-1550 ° C to avoid excessive grain growth. The core process difficulty depends on properly controlling the t → m phase transition temperature window (Ms factor). Considering that silicon carbide has a covalent bond proportion of approximately 88%, solid-state sintering calls for a high temperature of more than 2100 ° C and relies upon sintering help such as B-C-Al to develop a liquid stage. The response sintering method (RBSC) can attain densification at 1400 ° C by infiltrating Si+C preforms with silicon thaw, yet 5-15% complimentary Si will certainly continue to be. The preparation of silicon nitride is one of the most intricate, generally using GPS (gas stress sintering) or HIP (hot isostatic pushing) processes, including Y TWO O TWO-Al two O two series sintering help to form an intercrystalline glass phase, and warmth treatment after sintering to crystallize the glass stage can significantly boost high-temperature performance.
( Zirconia Ceramic)
Comparison of mechanical buildings and strengthening device
Mechanical buildings are the core examination indicators of structural ceramics. The four sorts of products reveal completely various fortifying systems:
( Mechanical properties comparison of advanced ceramics)
Alumina generally relies on great grain strengthening. When the grain size is minimized from 10μm to 1μm, the stamina can be raised by 2-3 times. The excellent strength of zirconia originates from the stress-induced stage transformation system. The stress and anxiety area at the split pointer activates the t → m phase improvement accompanied by a 4% quantity development, leading to a compressive stress protecting result. Silicon carbide can enhance the grain border bonding strength via strong solution of elements such as Al-N-B, while the rod-shaped β-Si three N four grains of silicon nitride can create a pull-out impact comparable to fiber toughening. Crack deflection and linking contribute to the renovation of toughness. It is worth noting that by creating multiphase porcelains such as ZrO TWO-Si Two N Four or SiC-Al ₂ O TWO, a variety of toughening systems can be worked with to make KIC exceed 15MPa · m ONE/ ².
Thermophysical residential properties and high-temperature actions
High-temperature stability is the essential advantage of structural porcelains that distinguishes them from typical products:
(Thermophysical properties of engineering ceramics)
Silicon carbide exhibits the very best thermal management performance, with a thermal conductivity of approximately 170W/m · K(equivalent to light weight aluminum alloy), which is because of its basic Si-C tetrahedral structure and high phonon proliferation rate. The low thermal expansion coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have superb thermal shock resistance, and the vital ΔT value can get to 800 ° C, which is especially appropriate for duplicated thermal biking atmospheres. Although zirconium oxide has the greatest melting factor, the conditioning of the grain limit glass stage at heat will cause a sharp drop in stamina. By adopting nano-composite innovation, it can be increased to 1500 ° C and still preserve 500MPa stamina. Alumina will certainly experience grain border slip above 1000 ° C, and the addition of nano ZrO two can create a pinning impact to hinder high-temperature creep.
Chemical stability and deterioration behavior
In a corrosive environment, the 4 types of ceramics show considerably different failure devices. Alumina will certainly dissolve externally in solid acid (pH <2) and strong alkali (pH > 12) solutions, and the deterioration price boosts exponentially with enhancing temperature, getting to 1mm/year in steaming concentrated hydrochloric acid. Zirconia has excellent tolerance to not natural acids, yet will go through reduced temperature level degradation (LTD) in water vapor environments above 300 ° C, and the t → m stage change will certainly result in the development of a microscopic fracture network. The SiO ₂ protective layer based on the surface area of silicon carbide gives it outstanding oxidation resistance listed below 1200 ° C, but soluble silicates will be generated in molten antacids metal environments. The corrosion actions of silicon nitride is anisotropic, and the corrosion rate along the c-axis is 3-5 times that of the a-axis. NH Four and Si(OH)₄ will be generated in high-temperature and high-pressure water vapor, resulting in material bosom. By maximizing the composition, such as preparing O’-SiAlON ceramics, the alkali rust resistance can be boosted by greater than 10 times.
( Silicon Carbide Disc)
Normal Design Applications and Case Studies
In the aerospace field, NASA uses reaction-sintered SiC for the leading side elements of the X-43A hypersonic aircraft, which can stand up to 1700 ° C aerodynamic home heating. GE Aviation utilizes HIP-Si three N four to manufacture turbine rotor blades, which is 60% lighter than nickel-based alloys and allows greater operating temperatures. In the medical field, the fracture toughness of 3Y-TZP zirconia all-ceramic crowns has actually gotten to 1400MPa, and the life span can be reached greater than 15 years through surface area gradient nano-processing. In the semiconductor industry, high-purity Al two O six ceramics (99.99%) are utilized as tooth cavity materials for wafer etching equipment, and the plasma deterioration rate is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm elements < 0.1 mm ), and high manufacturing price of silicon nitride(aerospace-grade HIP-Si ₃ N ₄ reaches $ 2000/kg). The frontier growth instructions are concentrated on: ① Bionic structure design(such as covering layered structure to raise sturdiness by 5 times); two Ultra-high temperature sintering modern technology( such as trigger plasma sintering can accomplish densification within 10 minutes); four Smart self-healing porcelains (having low-temperature eutectic stage can self-heal cracks at 800 ° C); four Additive manufacturing modern technology (photocuring 3D printing accuracy has reached ± 25μm).
( Silicon Nitride Ceramics Tube)
Future advancement patterns
In a comprehensive contrast, alumina will still dominate the typical ceramic market with its price benefit, zirconia is irreplaceable in the biomedical area, silicon carbide is the recommended material for severe environments, and silicon nitride has fantastic prospective in the area of high-end devices. In the following 5-10 years, via the combination of multi-scale structural regulation and intelligent manufacturing technology, the efficiency borders of design ceramics are expected to achieve new breakthroughs: as an example, the layout of nano-layered SiC/C ceramics can attain sturdiness of 15MPa · m 1ST/ ², and the thermal conductivity of graphene-modified Al two O five can be boosted to 65W/m · K. With the development of the “twin carbon” strategy, the application range of these high-performance ceramics in brand-new energy (gas cell diaphragms, hydrogen storage space products), environment-friendly production (wear-resistant components life increased by 3-5 times) and various other fields is expected to preserve an ordinary annual development price of greater than 12%.
